Product features
Large opening, modular design, easy installation.

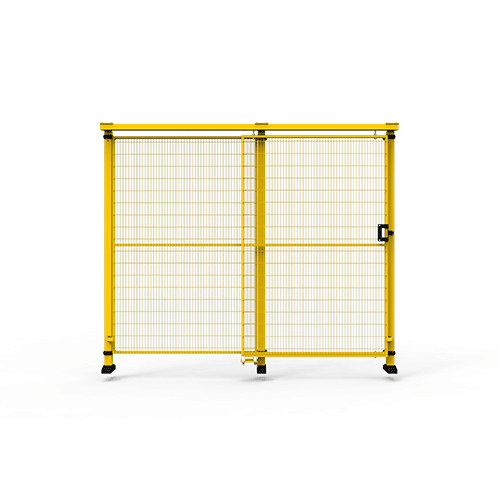

Standard configuration of single-door : one set of handle assembly (double open), one set of upper slide rail, one set of guide wheel bracket, and two sets of buffer block assembly.

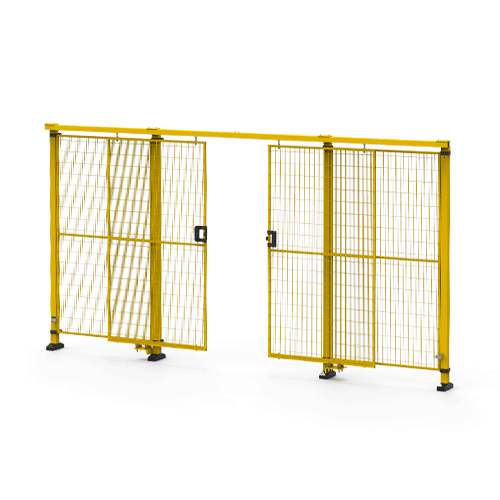

The standard configuration of double-door : two sets of handle components (double opening), two sets of upper slide rails, two sets of guide wheel brackets, and two sets of buffer block components.
Optional configuration : ground pin, safety lock + mechanical pin.
※ Double rail sliding doors, floor rail sliding doors, etc. can be customized according to customer needs.
Technical parameter
Opening direction Left/Right/Left & Right
Open height 2200/2000/1600/1200mm
Open width Single door 700/800/1000/1200/1500mm
Double door 1400/1600/1800/2000/2400/2800/3000mm

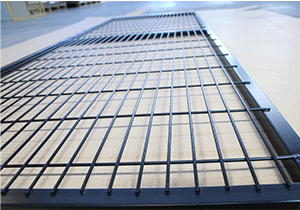

Grid 100*20mm
Wire diamete 3mm

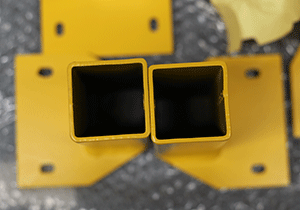

Square tube 20*20mm
Colour Yellow/Gray/Black
Qualitative carbon steel
Strong and firm, not easily deformed
Professional protective
Encrypt network piece,better security
Environmental protection
Imported plastic powder, Swiss electrostatic spraying technology
Solid construction
Unique welding, firm and beautiful
Lightweight and quick
Modular design, easy installation
Elegant appearance
Unified color, good perspective
Impact test
According to ISO 14120-2015 standard, can withstand 1600J impact force.

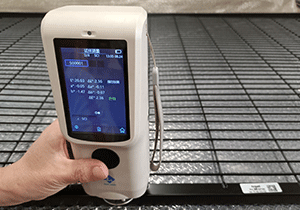

Color difference test
The color difference is measured by the instrument method in accordance with the provisions of the standards GB/T 11186.2-1989 and GB/T 11186.3-1989, and the sampling test is carried out by a spectrophotometer.

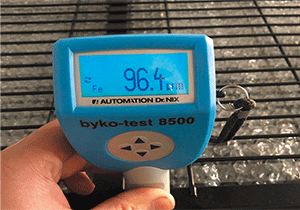

Spray layer thickness test
Spray layer thickness conform to GB/T 26941.1-2011 standard. The sampling inspection is done by thickness meter.
Salt mist
According to ISO09227 standard to do the corrosion resistance test.
