Steel panel and column protection
Technical parameter
Colour Yellow/Gray/Black

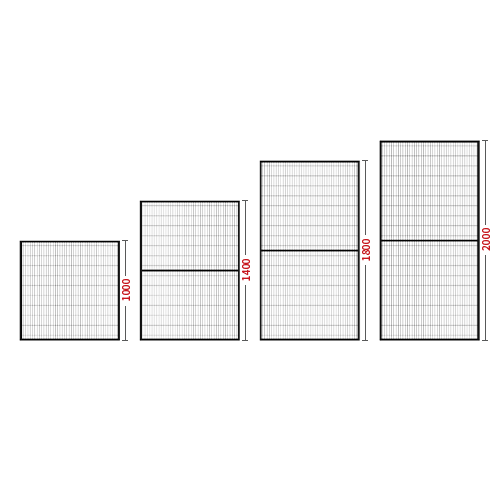

Panel height 2000/1800/1400/1000mm
Panel width 1200/1000/900/800/700/600/500/300/200mm
Grid 100*20mm
Wire diamete 3mm
Square tube 20*20mm
Technical parameter
Column height 2200/2000/1600/1200mm
Quick insertion column 60*60mm
Light curtain column 80*80mm
Qualitative carbon steel
Strong and firm, not easily deformed
Professional protective
Encrypt network piece,better security
Environmental protection
Imported plastic powder, Swiss electrostatic spraying technology
Solid construction
Unique welding, firm and beautiful
Lightweight and quick
Modular design, easy installation
Elegant appearance
Unified color, good perspective
Impact test
According to ISO 14120-2015 standard, can withstand 1600J impact force.
Color difference test
The color difference is measured by the instrument method in accordance with the provisions of the standards GB/T 11186.2-1989 and GB/T 11186.3-1989, and the sampling test is carried out by a spectrophotometer.
Spray layer thickness test
Spray layer thickness conform to GB/T 26941.1-2011 standard. The sampling inspection is done by thickness meter.
Salt mist
According to ISO09227 standard to do the corrosion resistance test.
